Key Facilities
Double column CNC Planner machine
MAKE: MITSUBISH, MODEL:MAF-180C
SN NO: 3KAA011
YEAR OF MFG: YEAR 2015
Specifications
X: 5000mm
Y: 2800mm
Z: 1100mm
Table Size : 5000×2500
Table Load: 20ton

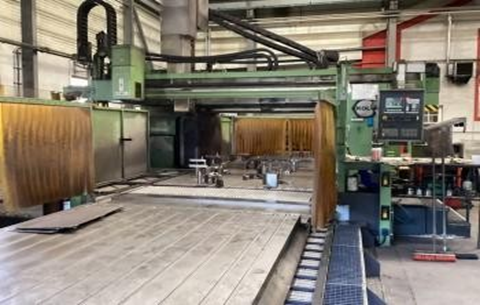

Kolb Varimat VD 2500 (13.132KH)
Specifications
Control Siemens 880
Cross travel milling head (mm) 3500
Taper ISO 50
Max. height (mm) 1200
Longitudinal Travel (mm) 7000
Table (mm) 3000 x 2500 (2x)
R.P.M. Spindle 4000
kW 42
Volts 380V
Cycles 50

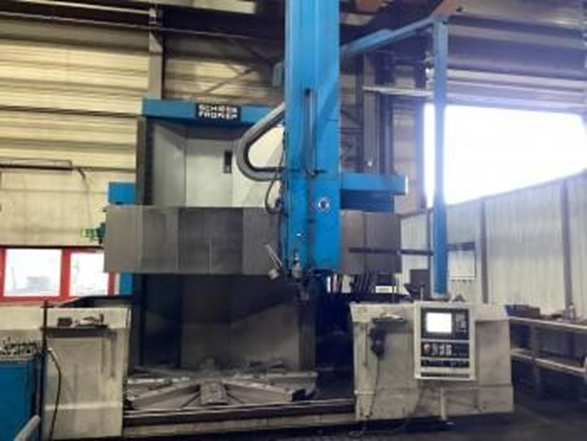

Schiess 27DE200 (13.133DH)
MAKE: MITSUBISH, MODEL:MAF-180C
SN NO: 3KAA011
YEAR OF MFG: YEAR 2015
Specifications
Control Siemens 840DSL
Maximum Swing (mm) 2700
Maximum Height (mm) 2500
4-Jaw Face Plate (mm) 2000
R.P.M. 120
Volts 380V
Cycles 50
Schiess 3K350 (13.134DH)
Specifications
Control Siemens 840D
Maximum Swing (mm) 4100
Maximum Height (mm) 3100
4-Jaw Face Plate (mm) 3500
Maximum Load (kg) 20.000
R.P.M. 0,43 – 32
Volts 400V
Cycles 50

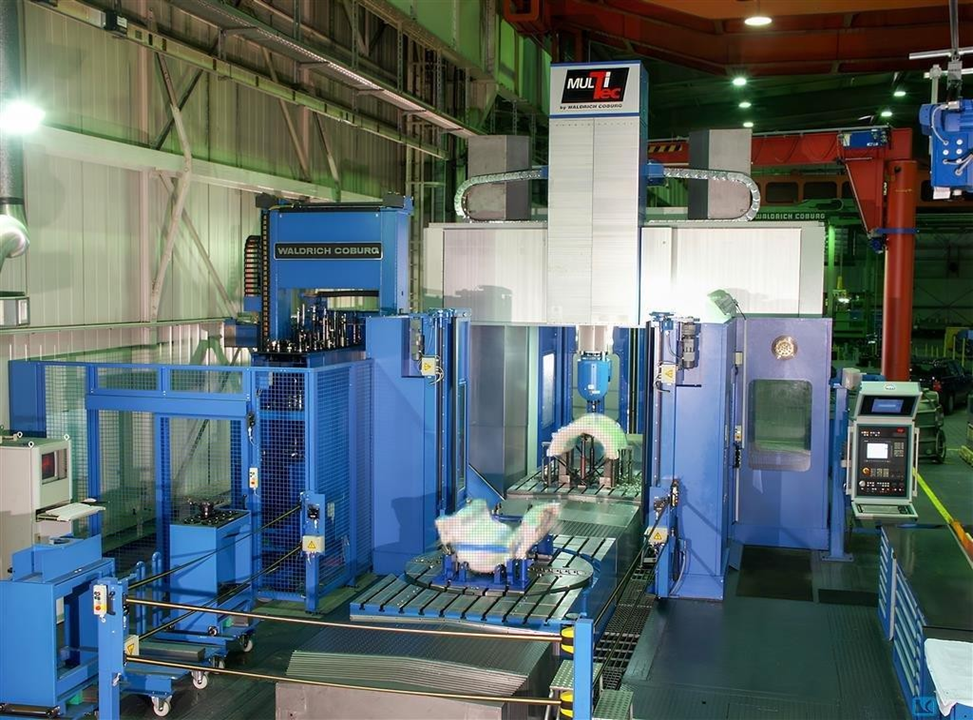

WALDRICH COBURG MULTITEC 2000 AT
MAKE: MITSUBISH, MODEL:MAF-180C
SN NO: 3KAA011
YEAR OF MFG: YEAR 2015
Specifications
Machine Group: Planer-Type Milling M/C -Double Column
Make : WALDRICH COBURG AXIS
Number: AXIS 5 ( five ) X : 7000mm
Model : MultiTec 2000 AT Y : 3000mm
CNC : SIEMENS 840 C Z + W : 1500 mm + 1000 mm
Clamping Width of Both Tables 1750 mm
Clamping Length of Front Table 3000 mm
Clamping Length of Rear Table 2000 mm
Clamping Length with Coupled Tables 6000 mm
Table Total weight: 40 ton
Han’s Laser machine
Specifications
Table Size
X: 13000mm
Y: 3000
MS upto 45mm
S.S upto 22mm
Double column CNC Planner machine
MAKE: MITSUBISH, MODEL:MAF-180C
SN NO: 3KAA011
YEAR OF MFG: YEAR 2015
Specifications
X: 5000mm
Y: 2800mm
Z: 1100mm
Table Size : 5000×2500
Table Load: 20ton

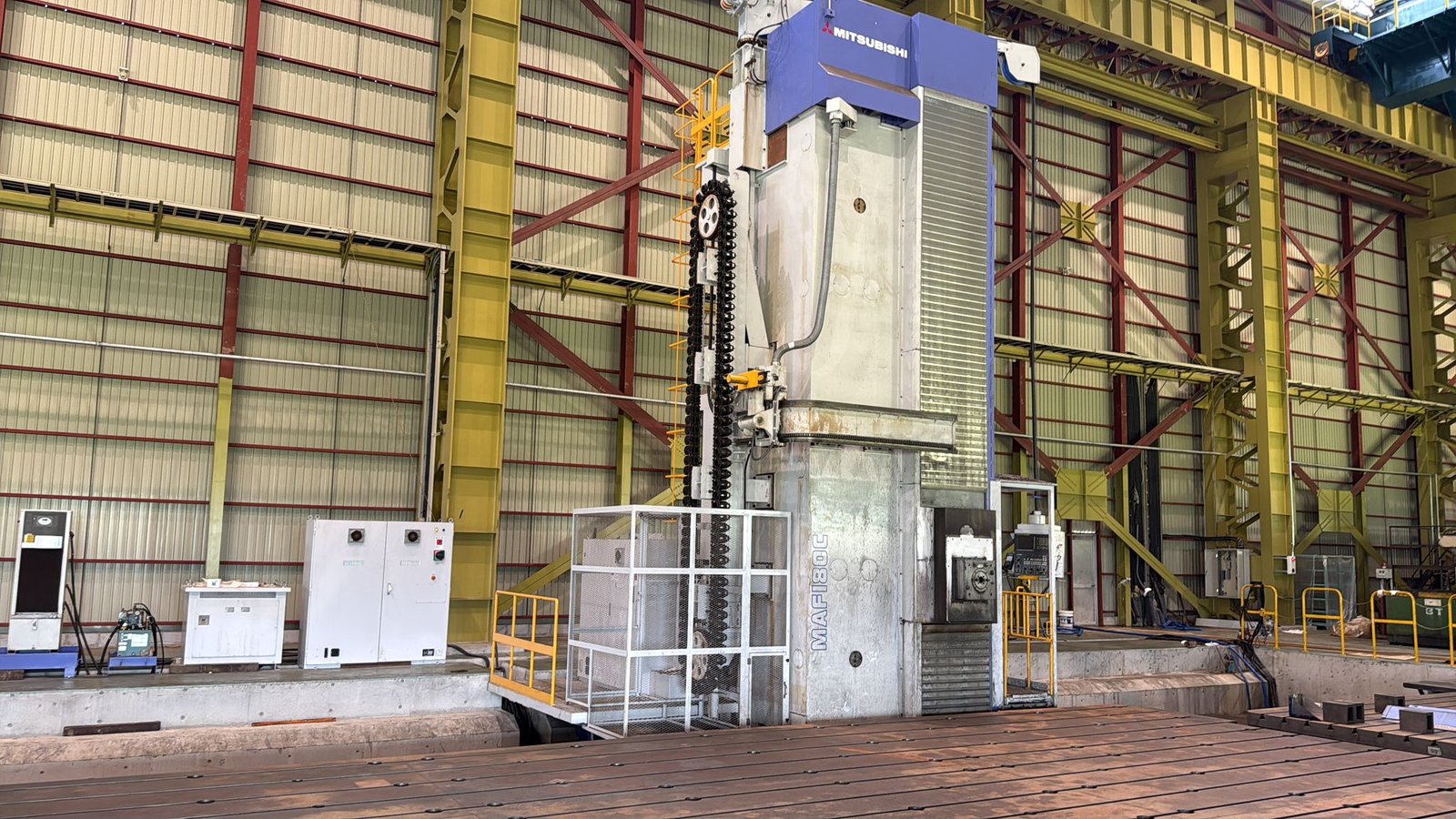

USED CNC FLOOR TYPE HORIZONTAL BORING MACHINE
MAKE: MITSUBISH, MODEL:MAF-180C
SN NO: 3KAA011
YEAR OF MFG: YEAR 2015
SPECIFICATIONS:-
1. X STROKE 19,000MM
2. Y STROKE 5,000MM
3. Z STROKE 1,250MM
4. W STROKE 1,000MM
5. ROTARY TABLE: 4,000 X 4,500MM
6. V STROKE: 3,000MM
7. LOAD CAPACITY 100TON
8. CNC SYSTEM: FANUC 31IB
19. ATC 100
10. FLOOR PLATE 2000 X 4000 X 6 SETS
11. 90 DEG. ANGLE HEAD
12. EXTENSION HEAD
13. UNIVERSAL HEAD
14. LINEAR SCALE
CNC Laser & Plasma Cutting
At Devki Technocrat, we are equipped with advanced CNC Laser and Plasma Cutting machines capable of handling sheets and plates up to 45mm thickness with unmatched precision. These cutting-edge technologies allow us to process a wide range of metals including mild steel, stainless steel, and alloy steels, ensuring smooth edges, accurate dimensions, and minimal material wastage.
Our laser and plasma cutting facilities are designed to cater to both high-volume production as well as custom, complex shapes required for heavy engineering applications. The precision of CNC control ensures consistency across batches, while the flexibility of the system enables us to take on diverse industrial requirements – from small components to large, heavy-duty structures.
Large Size CNC Plano Miller
Our Large Size CNC Plano Miller with an advanced 7-axis control and integrated turning facility is designed to handle oversized and complex components with exceptional accuracy. This machine enables us to work on large structures that demand both heavy-duty machining and fine precision, making it ideal for industries such as Power, Steel, Defense, Automobile, and Mining.
The 7-axis capability ensures flexibility in machining intricate geometries, multi-surface operations, and detailed finishing in a single setup. With the added turning functionality, we can machine rotational components along with large planar surfaces, significantly reducing handling time and ensuring first-time-right machining. This not only increases productivity but also guarantees uniform accuracy across all dimensions.

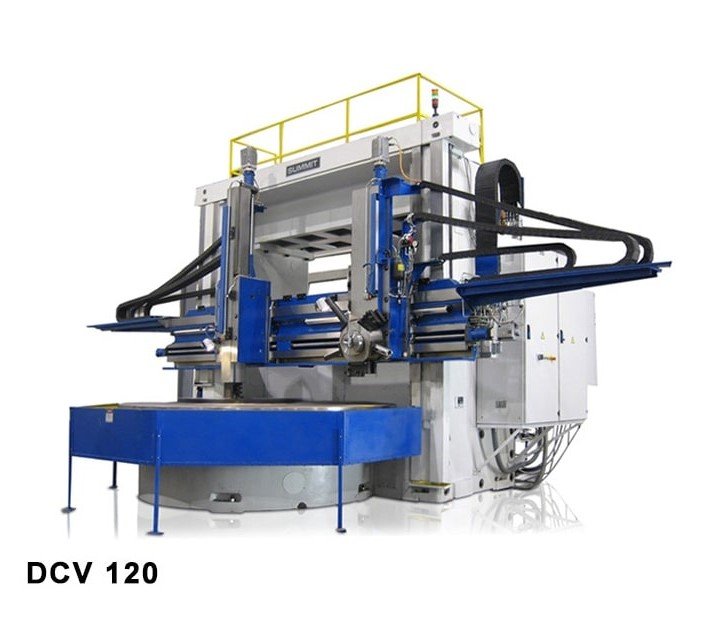

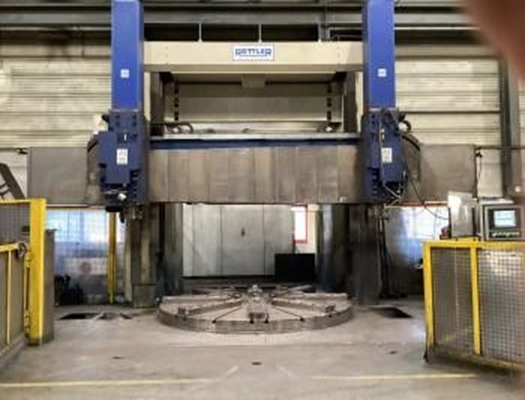

CNC Vertical Boring Mills
Our CNC Vertical Boring Mills are equipped to handle components with diameters of up to 4100mm, making them ideal for machining large, heavy, and complex cylindrical parts. With advanced CNC controls, these machines ensure high precision in boring, facing, grooving, and contouring operations, while maintaining accuracy across massive workpieces. This capability is crucial for industries such as Power, Steel, Mining, and Heavy Equipment, where large-scale components form the backbone of critical infrastructure.
Designed to accommodate heavy loads with stability, the Vertical Boring Mills deliver smooth finishes and precise tolerances, even on oversized parts. By integrating advanced machining techniques with robust capacity, we provide clients with reliable solutions that reduce lead time, eliminate rework, and guarantee consistency. This facility reinforces our ability to serve as a trusted partner for industries requiring large-diameter precision machining.

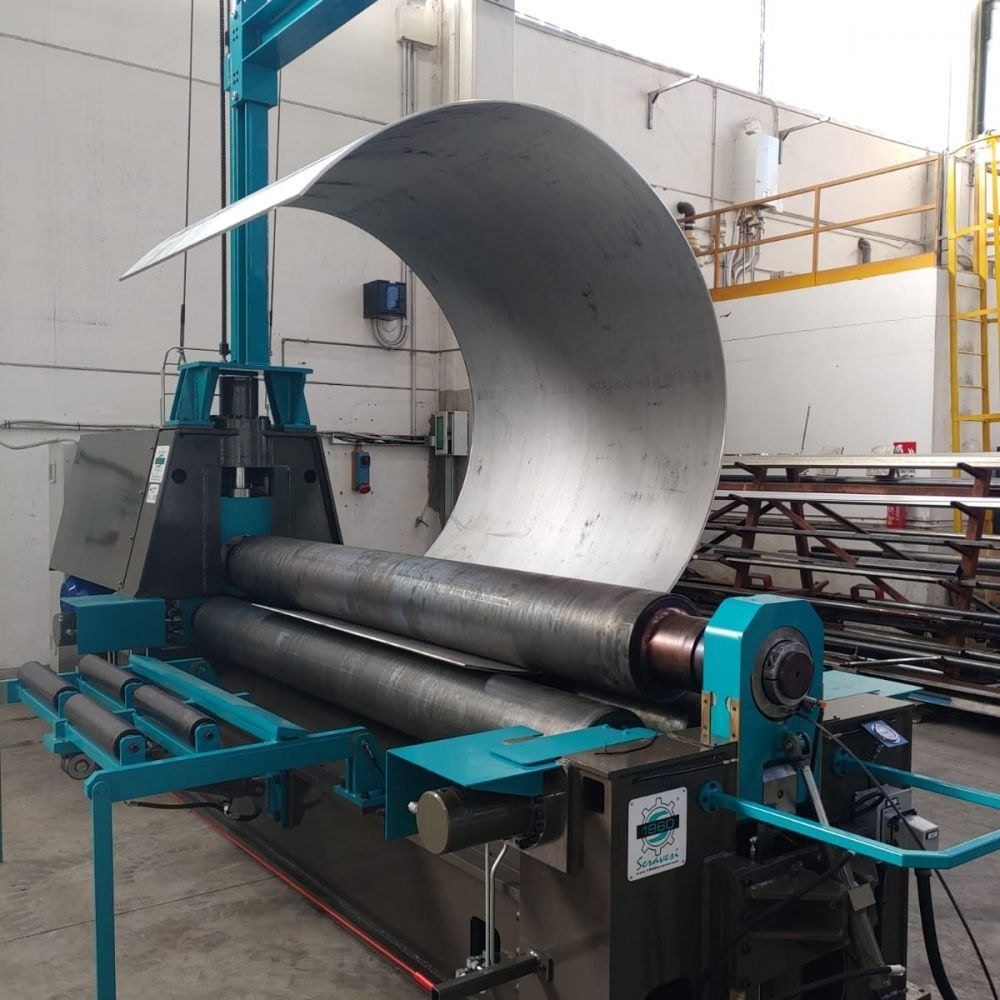

Plate Rolling
At Devki Technocrat, our Plate Rolling facility is capable of handling plates up to 90mm in thickness and 3 meters in width, making it suitable for some of the heaviest and most demanding fabrication requirements. With this advanced capability, we can roll thick plates into precise cylindrical and conical shapes, ensuring uniformity and strength across every component. This facility plays a vital role in manufacturing pressure vessels, boilers, structural shells, and large industrial equipment for critical sectors such as Power, Steel, Mining, and Defense.
By combining robust machinery with skilled operators, we deliver accurate, repeatable results even with the most challenging materials. Our plate rolling solutions provide clients with components that meet global quality standards, ensuring durability and long service life in demanding industrial environments.
EOT Cranes
Our facility is equipped with Electric Overhead Travelling (EOT) Cranes capable of handling loads of up to 70 tons, ensuring safe and efficient movement of heavy and oversized components within the workshop. These cranes are a vital part of our infrastructure, allowing us to seamlessly manage large-scale fabrication and machining projects without compromising on precision or safety.
With high load-bearing capacity and smooth operational control, our EOT cranes enable the handling of bulky raw materials, semi-finished parts, and finished products with ease. This capability not only enhances productivity but also minimizes downtime, ensuring faster project execution. By integrating robust lifting solutions into our workflow, we maintain a streamlined process that supports large and complex engineering projects across diverse industries such as Power, Steel, Mining, and Defense.
